SDY42-A/B/C



Ürün Adı : SDY42-A/B/C
Özellikleri :

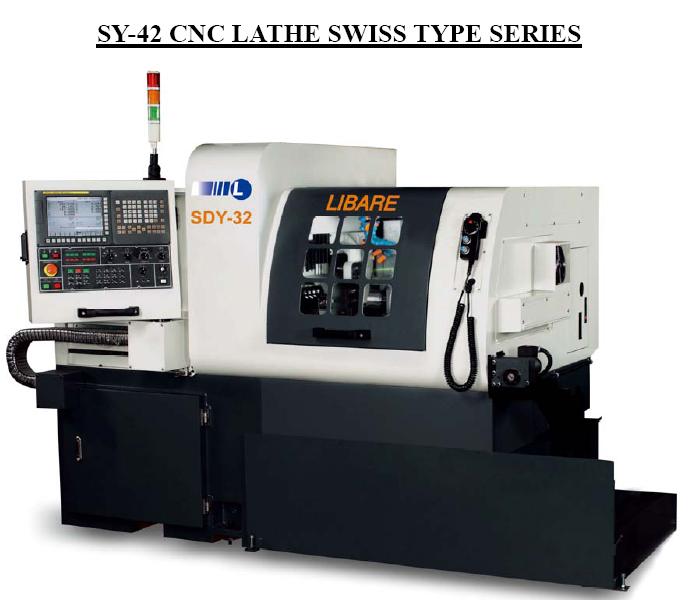

SDY-42 CNC LATHE SWISS TYPE SPECIFICATION





SPECIFICATION

UNIT

SY-42(A)

SY-42(B)

SY-42( C)

Max. Turing dia. of main spindle

mm

∮42

Max. Turing dia. of sub spindle

mm

∮42

∮42

∮42

Max.turning length(Fixed guide bush)

mm

200

Max.turning length(Rotary guide bush)

mm

200

Max.turning length(Non guide bush)

mm

80

Max. Drilling capacity of main spindle

mm

30

Max. Drilling capacity of sub. spindle

mm

30

30

30

Max. Tapping capacity of main spindle

M16

Max. Tapping capacity of sub. spindle

M16

M16

M16

Max. cross drilling capacity

mm

no

13

13

Max. cross tapping capacity

no

M10

M10

No. of external turning tools

pcs

6

6

6

No. of internal turning tools

pcs

5

5

5

No. of cross drilling

pcs

4

4

4

Face tool holder(Sub-spindle)

pcs

no

no

4

Size of tools

mm

20 x 20 x 95 ~ 155

No. of Axis controls

5(Axis)

5(Axis)

7(Axis)

Bore of Spindle

mm

∮58

Spindle speed range

rpm

15 ~ 6000

Rapid Travel (X / Z)

M/min

18

Main Spindle Motor

HP

10(20)

Sub-spindle Motor

HP

10

X1 / Z1 Motor

KW

1.6

Y Axis Motor

KW

1.4

Cross drilling Motor

KW

no

0.75

0.75

End drilling Motor

KW

no

1.4

1.4

X2 /Z2 Motor

KW

no / 0.75

no / 0.75

0.75 / 0.75

Coolant Motor

KW

0.75

Power Requirement

KW

30KVA

30KVA

30KVA

Machine Size

M

2.3 x 1.5 x 1.9

2.3 x 1.5 x 1.9

2.3 x 1.5 x 1.9

Weight

kg

3100

3100

3100



** We have right to modify machine specification & colour & cover without notice**
